water dissolved oxygen sensor NS-DO103

water dissolved oxygen sensor NS-DO103

Number：NS-DO103
Price：0.00
Hits：506
Time：2023-04-06 11:45:33
Description

Water dissolved oxygen sensor NS-DO103 hospital waster water DO analzying
Product Introduction

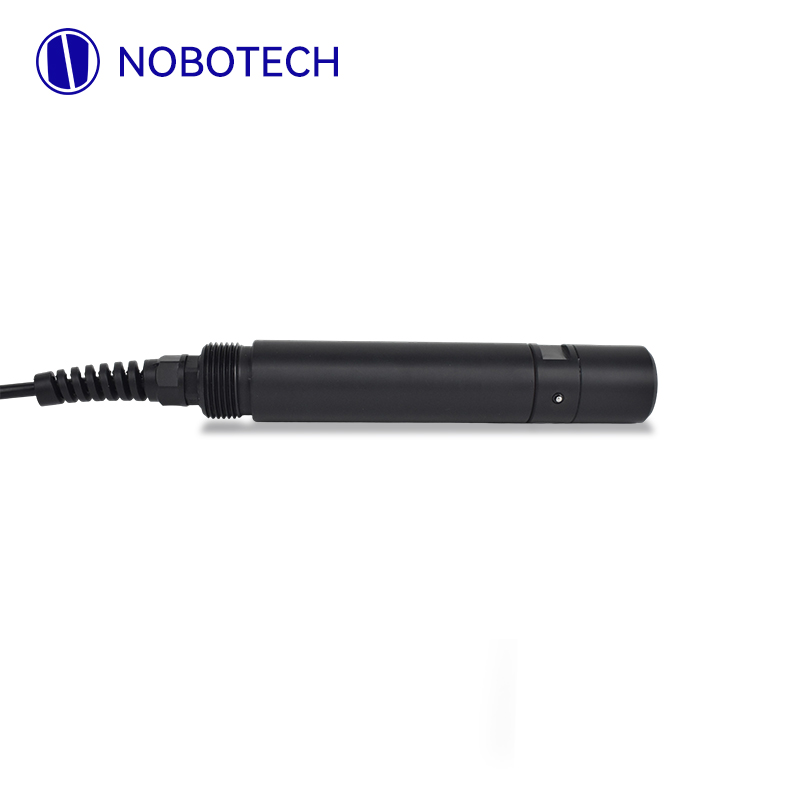

The Galvanic Cell method dissolved oxygen digital sensor is a new generation of intelligent water quality detection digital sensor independently developed by Nobotech. It can check, calibrate, maintain through mobile phone or computer. It’s easy to maintenance, with high stability and good repeatability. Its’ function it to test the DO value and temperature of liquid. It is widely used in waste water treatment, purified water, circulating water, boiler water and other systems as well as continuous monitoring of dissolved oxygen values in solutions such as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceutical, fermentation, chemical and other farming and tap water.

water dissolved oxygen sensor NS-DO103 hospital waster water DO analzying
Main Feature

  • This product is a DO digital sensor, which can directly output RS485 signal and 4~20mA signal.
  • The product has high precision, high stability and strong anti-interference ability.
  • Automatic temperature compensation.
  • No need for instrumentation, can directly connect to computers, PLC and other devices with RS485/4-20mA signal interface for data acquisition and maintenance; it is convenient for users to integrate sensors into the industrial computer system such as PC system and IOT.
  • The sensor can be set by RS485 communication, slave address and baud rate, online calibration, factory reset, 4-20mA output corresponding range , proportional coefficient and incremental compensation.
  • Two-point calibration method is used.
  • Power off protection > 10 years.

water dissolved oxygen sensor NS-DO103 hospital waster water DO analzying
Technical Indicators

  • Measurement range: 0～20.0 mg/L, 0~60.0°C
  • Precision: dissolved oxygen: ± 2% FS, temperature: ± 0.3 ° C
  • Stability: ≤0.1mg/L 24h
  • Temperature compensation: 0～60°C
  • 485 interface: support IOT, (partially compatible with MODBUS protocol).
  • Working conditions: ambient temperature is 0-60 ° C
  • Input impedance: ≥1×1012Ω
  • Output load: 4-20mA load <750Ω (optional)
  • Working voltage: DC 5V/12V/24V
  • Protection rating: IP68
  • Life time: 6~8 months
Tags：dissolved oxygen sensor
