Fluorescence Dissolved Oxygen sensor NS-DO606

Number：NS-DO105

Price：￥0.00

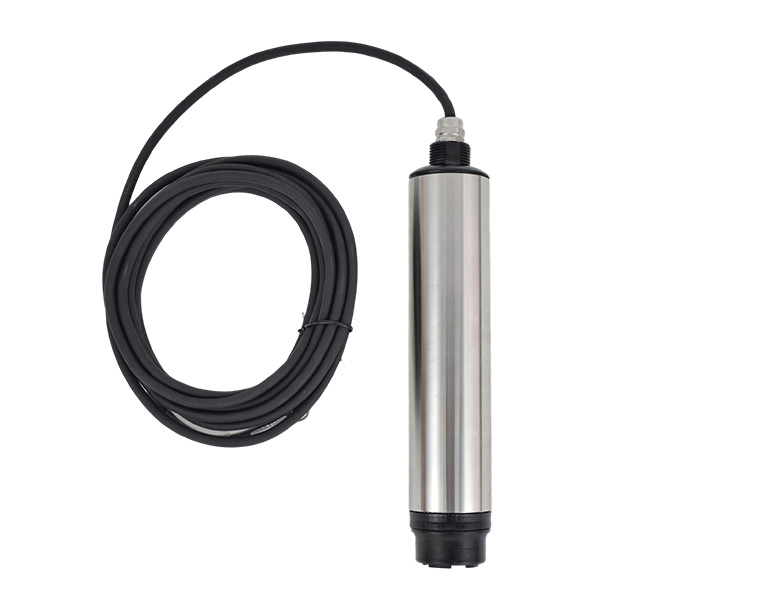

Fluorescence Dissolved Oxygen sensor meter NS-DO606
The dissolved oxygen sensor measures the dissolved oxygen by the fluorescence method, and the emitted blue light is irradiated on the phosphor layer. The fluorescent substance is stimulated to emit red light, and the oxygen concentration is inversely proportional to the time when the fluorescent substance returns to the ground state. By using this method to measure the dissolved oxygen, it will not produce oxygen consumption, thus assuring data stability, reliable performance, no interference, and simple installation and calibration.

Optical dissolved oxygen sensor probe NS-DO606 water dissolved oxygen tester

Specifications	Details
Power	12VDC
Weight	1.4KG
Materials	SUS316L + PVC（common version），Titanium alloy（seawater version）
	O-ring：fluororubber
	Cable：PVC
Waterproof Rate	IP68/NEMA6P
Measurement Range	0-20mg/L(0-20ppm) （The range can be customized）
Measurement Range	Temperature：0-45℃
Measurement Accuracy	Measured value±3%
Measurement Accuracy	Temperature：±0.5℃
Storage Temperature	-15~60℃
Measure ambient temperature	0~45℃
Pressure range	≤0.3Mpa
Calibration	Air automatic calibration
	Samples calibration
	Zero calibration
Cable Length	Standard: 10M, can be customized

Tags：Optical dissolved oxygen sensor
