DOZ-7600 online water ozone analyzer tester Intelligent dissolved ozone meter with sensor

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    $1,470.00
  • 5 - 19 Sets
    $1,370.00
  • >=20 Sets
    $1,200.00
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangxi, China (Mainland)
Brand Name:
NOBOTECH
Model Number:
DOZ-7600
Application:
Industry Water Treatment
Measuring range:
Ozone 0-20mg/L(ppm ) Temprature 0-60°C
Power supply:
220VAC±10% 50/60HZ
Weight:
0.9kg
Resolution:
0.01mg/L,0.1°C
Accuracy:
pecede ±1%or ±0.01mg/L,±0.5
Dimensions:
96*105*168mm
Hole size:
92*92mm
cable length:
3m
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

                Intelligent dissolved ozone in water analyzer is widely used in water treatment plant, canning factory, beverage factory, swimming pool, water cooling etc. It is designed for continuous detection and control of amounts of ozone in liquid.

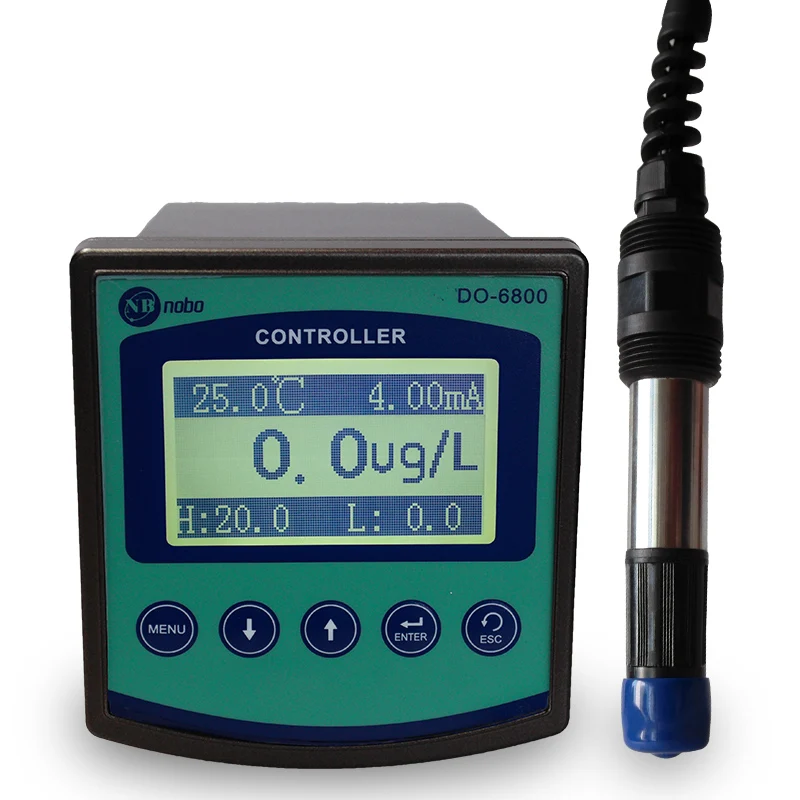

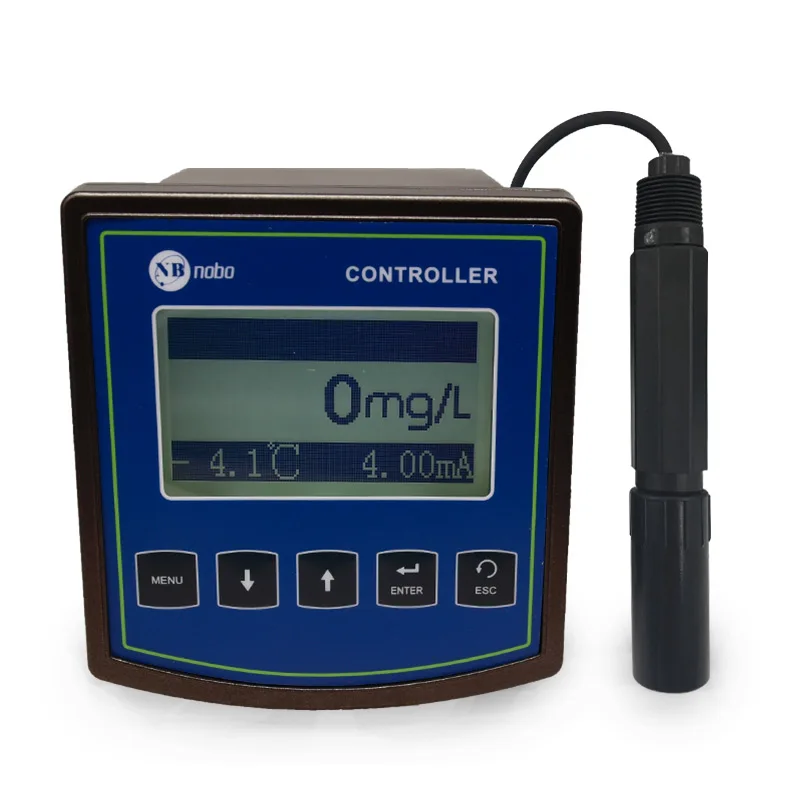

Detailed Images
Main Features
◇Protection Grade:IP65 (waterproof, dust-proof and damp-proof)
◇Digital LCD display and English operation menu .
◇The main components are imported  from foreign famous brand.
◇High accuracy  , high stability and strong anti-jamming.
◇Temperature compensation function: manual/automatic.
◇Watchdog:make sure the meter does not  go dead.
◇ABS plastic casing (waterproof, dust-proof and damp-proof).
◇Analog output: 4~20mA
◇Multi- parameters showed at the same time:Ozone value, temperature, output current, and alert of range ability etc.
◇Using advanced new-style constant voltage sensor. No need to change mebranes and reagents. It is easy to maintain, high sensitivity, high stability and quick response.
Technical Parameters
◇ Protection Grade
IP65 (waterproof, dust-proof and damp-proof)
◇Measuring range
ozone 0-20.00 mg/L(ppm), temperature:0~60℃
◇Resolution
0.01mg/L, 0.1℃
◇Accuracy
±1% or ±0.01 mg/L, ±0.5℃
◇Temperature compensation function
0~60℃(manual/automatic).
◇Control interface
Two groups of ON/OFF relay contact, divided into  high and low alarm control
◇Analog output
4~20mA
◇Relay
the relay lag value can be set freely. Relay load :3A 220VAC/24VDC.
◇Working conditions
environmental temperature of 0~60℃, relative humidity ≤90%
◇Output load:<750Ω(4-20mA)
◇Working voltage: 220VAC10%,50/60Hz.
◇Dimension :96x105×168 mm
◇Hole size:92×92mm
Other Products
Our Company

        Nanning Nobo Instrument Co., Ltd. is a leading high-tech enterprise for about 10 years ,which includes design , research & development , production , sales and service . We are focus on researching and developing intelligent water quality analysis instrument .Such as , PH/ORP meter , conductivity meter , dissolved oxygen meter , residual chlorin meter , dissolved ozone meter , ion meter , turbidity meter , salinity meter , sludge concentration meter ect.

     We will apply the Internet cloud service technology and offer the solution of internet of things system .Such as , multi-parameter water quality monitoring network system , smart city , smart agriculture and so on
     If you have any request pls don't hesitate to contact us , OEM and customized are available ! We sincerely hope to cooperation with you !

Email : noboricky@ gmail.com
Mobile :+86-186260953345
Tel.:+86-0771-6717697 ext 803
Web.: www.nobowisd.com     www.nobotech.com
Packing & Delivery
Why Chooes US

1.Our company was established in 2009 with many years of experience make us excellence and professional.

2.We have our own factory with strong R&D center and QA team which can totally make sure the quality .

3. We have a completed after-sale service .

4. High quality! competitive price! Quick response! Excellent service experience!

FAQ

Q: How do you guarantee the quality?
A: Firstly, we have our own factory with strong R&D center and QA team which can totally make sure the quality of every single product. Secondly, we have a completed after-sale service .

Q: Is OEM available?
A: Yes, all goods can be customized according to your requirements, including packing, LOGO print, etc.

Q: Can it buy only 1 set of the meter?
A: Yes. No matter how many products you buy, we are grateful all along.

Q: How to deliver the goods for trial order or small order?
A : At customer's request ,we prefer to choose international express, such as DHL, EMS.TNT.Fedex.
